You’re about to tackle a big painting project and you’ve chosen to use a sprayer. Smart move!
But did you know you’ll need to thin your latex paint first? Don’t worry, it’s not as complicated as it sounds.
We’ve put together a simple guide to help you master the art of thinning latex paint for your sprayer.
So, put on your gloves, and let’s get started!
Do You Even Need to Thin It? The Quick Test
Before mixing anything, do a test spray on cardboard straight from the can. The result tells you what to do next:
- Sprays out in an even, consistent fan pattern? You're done — no thinning needed.
- Sputters, spits, or leaves thick globs? The paint's too thick for your sprayer and needs thinning.
- Runs or drips right off the surface? It's already too thin — this happens more with airless sprayers if the paint was pre-thinned by mistake.
Airless sprayers, thanks to their high pressure, can often handle latex paint straight from the can with no thinning at all. HVLP and compressed air sprayers are the ones that usually need it.
What You Need to Know Before You Mix Your Latex Paint
Understanding the basics of latex paint is the first step in mastering this process.
Latex paint is a water-based paint and is widely used because of its ease of use, non-toxicity, fast drying times and ease of cleaning.
It’s not oil-based, so you won’t have to worry about any heavy or lingering fumes or handling with solvents.
However, its thicker consistency can make it a bit tricky to use with a paint sprayer. That’s where thinning comes in.
You can’t just add water willy-nilly, though. You’ve got to know the right ratio.
Too much water, and you risk running paint and not enough coverage. Too little, and it won’t flow through the sprayer properly which makes it “spit” and the finish won’t look smooth and professional.
Also, different types of paint sprayers have varying requirements when it comes to the consistency of the paint. Here’s a breakdown:
Airless paint sprayer Photo: Graco.com
Airless Paint Sprayers: These sprayers work by pumping out paint at a very high pressure, atomizing the paint as it leaves the nozzle. Due to this mechanism, airless sprayers can handle thicker paints without the need for thinning in many cases. They’re often used for larger projects such as painting walls, ceilings and house exteriors, etc.

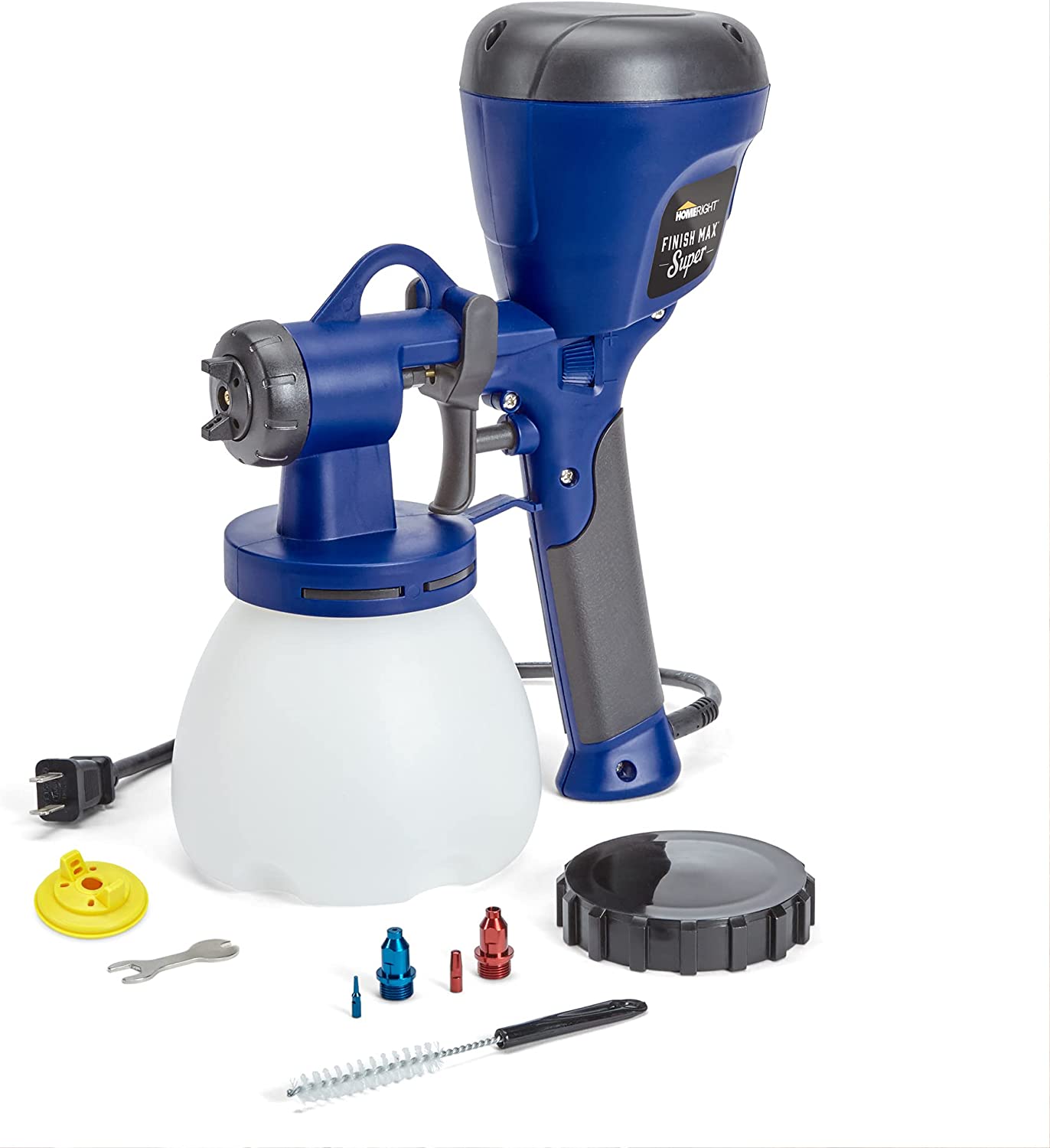

HVLP Paint sprayer Photo: Amazon.com
HVLP (High Volume Low Pressure) Sprayers: These sprayers use a large volume of air at low pressure to atomize the paint, producing a soft and fine finish. They are more suitable for detailed work, such as furniture or trim. HVLP sprayers often require the paint to be thinned to achieve the desired consistency.

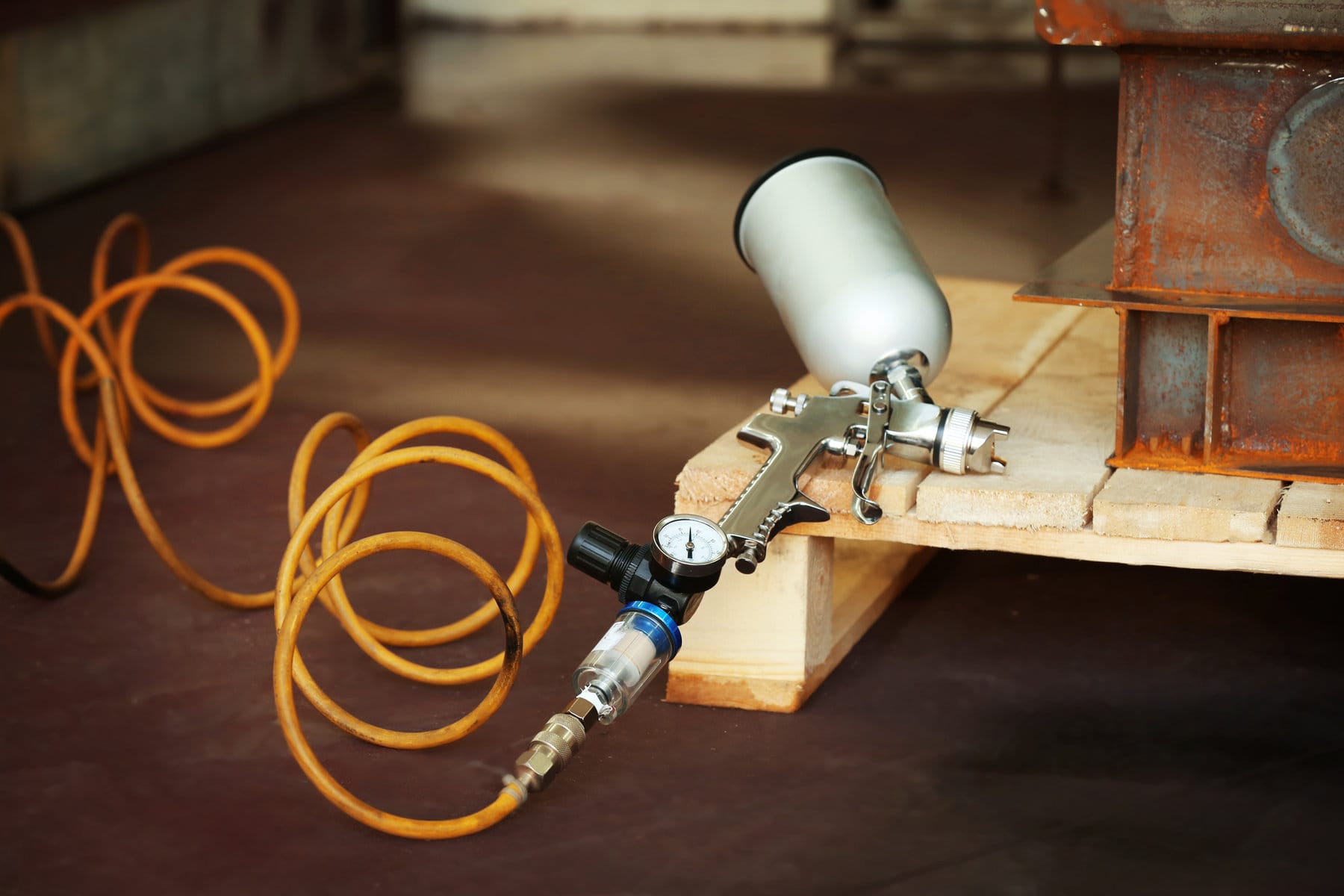

Spray gun that uses an external compressor.
Compressed Air Sprayers: These are the traditional type of sprayers that use compressed air to atomize the paint. Like HVLP sprayers, they often require the paint to be thinned.
Check your paint sprayer’s user manual for which type you have if you’re unsure.
How Much to Thin: By Sprayer Type
The right amount depends heavily on your sprayer type, the paint brand, and even the specific product — always check the paint can and your sprayer's manual first. These ranges are a starting point, not a fixed rule:
| Sprayer type | Typical thinning | Notes |
|---|---|---|
| Airless | 0% (usually none) | High pressure handles latex straight from the can in most cases |
| HVLP | 5–15% water | Wide range depending on paint brand — start low |
| Compressed air / conventional | 10–20% water | Often needs more thinning than HVLP for a fine atomized mist |
As a starting point: for every 10 parts of paint, add 1 part water (10%), then adjust from there based on the test spray.
Step-by-Step Guide to Thinning Latex Paint
Let’s dive into the process of how to properly thin your paint for the best results.
First, you’ll need a clean bucket where you’ll mix your paint and water. Pour in your latex paint, filling about three-quarters of the bucket. Then, slowly add water based on the table above for your sprayer type.
This can depend on the paint brand and also the paint sprayer’s brand. It’s best to start low and increase the amount of water when needed.
Next, grab a wooden stir stick. You’ll want to mix the solution thoroughly until it’s smooth and consistent.
When it’s mixed thoroughly, fill your paint sprayer’s paint container with about 80-90% paint and test spray on a piece of cardboard. Adjust the settings on your paint sprayer until you have a smooth, even spray.
The paint should come out in an even mist. If the paint is still too thick, add a bit more water and mix again before testing it out.
Finally, once you’ve achieved the desired consistency, it’s time to start painting. Remember to always keep your sprayer moving to avoid buildup and uneven coats.
The Viscosity Test: Check Thickness Without Guessing
Eyeballing it works, but there's a more reliable way to know when your paint is actually ready: timing how fast it drains.
With a viscosity cup: Dip the cup in the mixed paint, lift it out, and time how long it takes to drain back into the bucket in a steady stream. For most HVLP work, you're aiming for a drain time of about 25–40 seconds. Faster than that and it's likely too thin; slower and it needs more thinning.
No viscosity cup? Use a funnel instead: Pour the mixed paint through a funnel. If it flows through freely and steadily, it's thinned enough. If it clogs, hesitates, or barely moves, add a bit more water and test again.
Either method beats guessing by eye, especially if you're thinning a full batch and want it consistent from the first spray to the last.
Using Floetrol Instead of Water
Water isn't the only option for thinning latex paint — many painters prefer Floetrol, a paint additive made specifically for this. A few reasons it's worth considering:
- Fewer brush and lap marks, giving a smoother, more level finish — useful even beyond spraying
- Doesn't dilute the paint's binder the way water does, so you keep more of the paint's original hide and durability
- Extends working time, which helps in hot or dry conditions where paint can start setting up too fast
Floetrol is used similarly to water — start around 10% (or follow the product label) and adjust based on your test spray. Some painters split the difference and use a 50/50 mix of water and Floetrol for a middle ground between cost and finish quality.
Tips for Using a Paint Sprayer With Thinned Latex Paint
Before you start spraying, there are a few key things to remember when using your paint sprayer with thinned paint.
First, always make sure your sprayer is clean before you start. Any residue from previous jobs can affect the finish or clog up the nozzle.
Second, don’t rush. Apply the paint in thin, even layers. It’s better to need an extra coat than to deal with drips.
Third, keep the sprayer moving. If you linger too long in one spot, you’ll get a puddle.
Fourth, practice. The more you use your sprayer, the better you’ll get at delivering a smooth and consistent finish.
Lastly, keep some rags or wipes around since it can get messy.
FAQs
Here are some commonly asked questions about the subject.
What Are the Safety Precautions One Should Take When Thinning Latex Paint for a Paint Sprayer?
When handling paint, it’s important to ensure you’re wearing protective gear. Always wear gloves, goggles, and a mask when spraying.
Safety first, always.
How Do You Properly Clean a Paint Sprayer After Using Thinned Latex Paint?
To clean a paint sprayer after using latex paint, you’ll first empty any leftover paint in the paint can.
Then, disassemble the sprayer and rinse each part with warm water.
Reassemble once it’s completely dry.
Check the user’s manual if you don’t know how to disassemble it.
Can I Use Thinned Latex Paint With a Roller or Brush Instead of a Sprayer?
Yes, you can use thinned latex paint with a roller or brush. It’s important to remember though, that the paint may run if it’s too thin. Test it on a small area first to ensure good coverage.
Will thinning the paint affect its color or finish?
Thinning the paint can potentially affect its opacity and the number of coats you might need to achieve full coverage.
However, when done correctly and within recommended limits, the color itself should not change. The finish (glossy, matte, etc.) might be slightly affected if the paint is over-thinned, leading to a less even sheen. It’s always a good idea to test a small area first to ensure the color and finish are to your satisfaction.
What can I use instead of water to thin latex paint?
Floetrol is the most common alternative. It thins the paint without diluting the binder as much as water does, which means less impact on hide and durability, plus fewer brush and lap marks. It costs more than water, but for a finish-critical project it's often worth it.
How do I check if paint is thin enough without a viscosity cup?
Pour the mixed paint through a funnel. If it flows through steadily without clogging or hesitating, it's thinned enough. If it barely moves or leaves residue behind, add a bit more water (or Floetrol) and test again.
How does thinning paint affect drying time?
Thinning paint can alter its drying time. Generally, adding a solvent like water to latex paint or mineral spirits to oil-based paint can cause the paint to dry more slowly, especially if a significant amount is added.
However, in some cases, if only a small amount of solvent is added and the paint is spread thin, it might dry faster. Environmental factors like temperature and humidity also play a significant role in drying time.
Conclusion
So, you’ve got the lowdown on thinning latex paint for your sprayer. It’s not as complicated as it first seems, right?
With the right knowledge and a bit of patience, you’ll have your paint ready in no time.
Remember, always test first and adjust as needed.
